Generators & Power Distribution

Generators & Power Distribution

We understand the needs for Portable Power and Power Distribution for different settings. Your power systems need to support many things behind the scenes including Security, Sound, Hvac, medical, ticketing and retail. Setting up power for these services can be complex, and equipment often needs to fit within a tight space or be installed a long way from your event.

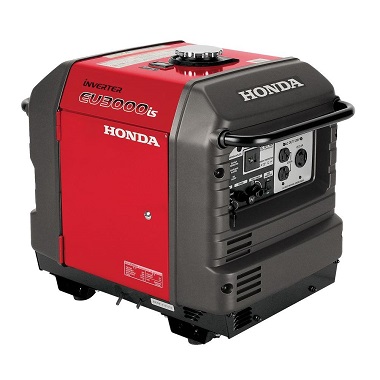

Most outdoor event sites need portable power generators. At Fiesta Solutions Event Rentals we have generators of all sizes starting with our Ultra quiet Honda 3000 watt to tow-able Diesel generators from 25kw to 150kw

Available voltages — 120/240 single phase, 208/120V, 480/270V. 3 phase

All our equipment operates quietly and has sound attenuated design for quiet operation and minimal noise. If you are not sure what type of diesel generator you need for your event, we are a phone call away and more than welcome to help.

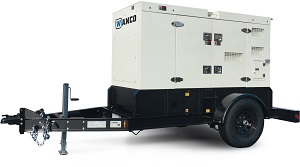

25kw Towable Portable Diesel Generator

25kw Towable Portable Diesel Generator

[vc_row][vc_column][vc_column_text]


10-HOURS RUN TIME PER DAILY RENTAL
extra hour $30.00
Unit Specifications
Prime Rating 20 kW 25 kVA
Standby Rating 22 kW 27.5 kVA
Generator RPM 1800
Voltage - Three Phase 208, 220, 240, 416, 440, 480V Switchable
Voltage - Single Phase 120, 127, 139, 240, 254, 277V Switchable
Generator Design Revolving field, Self-ventilated, Drip-proof, Single bearing
Voltage Regulation (No Load to Full Load) ±0.5 %
Power Factor 0.8
Armature Connection Star with Neutral/ Zig Zag
Excitation Brushless with AVR
No. Poles 4-pole
Frequency 60 Hz
Frequency Regulation (steady state load) ±0.25 %
Sound Level (Full Load at 23 ft.) 65 dB(A).

[/vc_column_text][/vc_column][/vc_row]

Call for Pricing
4/0 SC Entertainment 400 Amp Feeder Cable Set of 5 w/ Cams | 50Ft

4/0 SC Entertainment 400 Amp Feeder Cable Set of 5 w/ Cams | 50Ft

Application

  • Supplies power from generators to and between portable power distribution boxes.



Specifications

  • Rating: 400 Amp, 600 VAC
  • Male/Female Connector: 16 Series Inline Cam
  • Cable Gauge: 4/0 AWG
  • Cable Type: SC
Call for Pricing

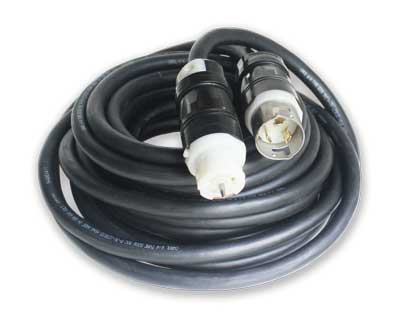

50A Twist-Locking Spider Box Power Cable

50A Twist-Locking Spider Box Power Cable

Daily $35.00
Weekly$65.00
California style cord, bologna cord or 6/4 spider box cable
Great impact, sunlight, and chemical resistance
Withstands rough use
Connectors feature one-piece construction for maximum conductivity
Call for Pricing
Diesel Generator Rental  150KVA  120KW

Diesel Generator Rental 150KVA 120KW

MQ Power WhisperWatt Super-Silent portable generators provide reliable power to meet the most demanding requirements. They are designed and built to withstand tough environments at construction sites and provide dependable temporary power at entertainment venues and disaster recovery operations.

Call for Pricing

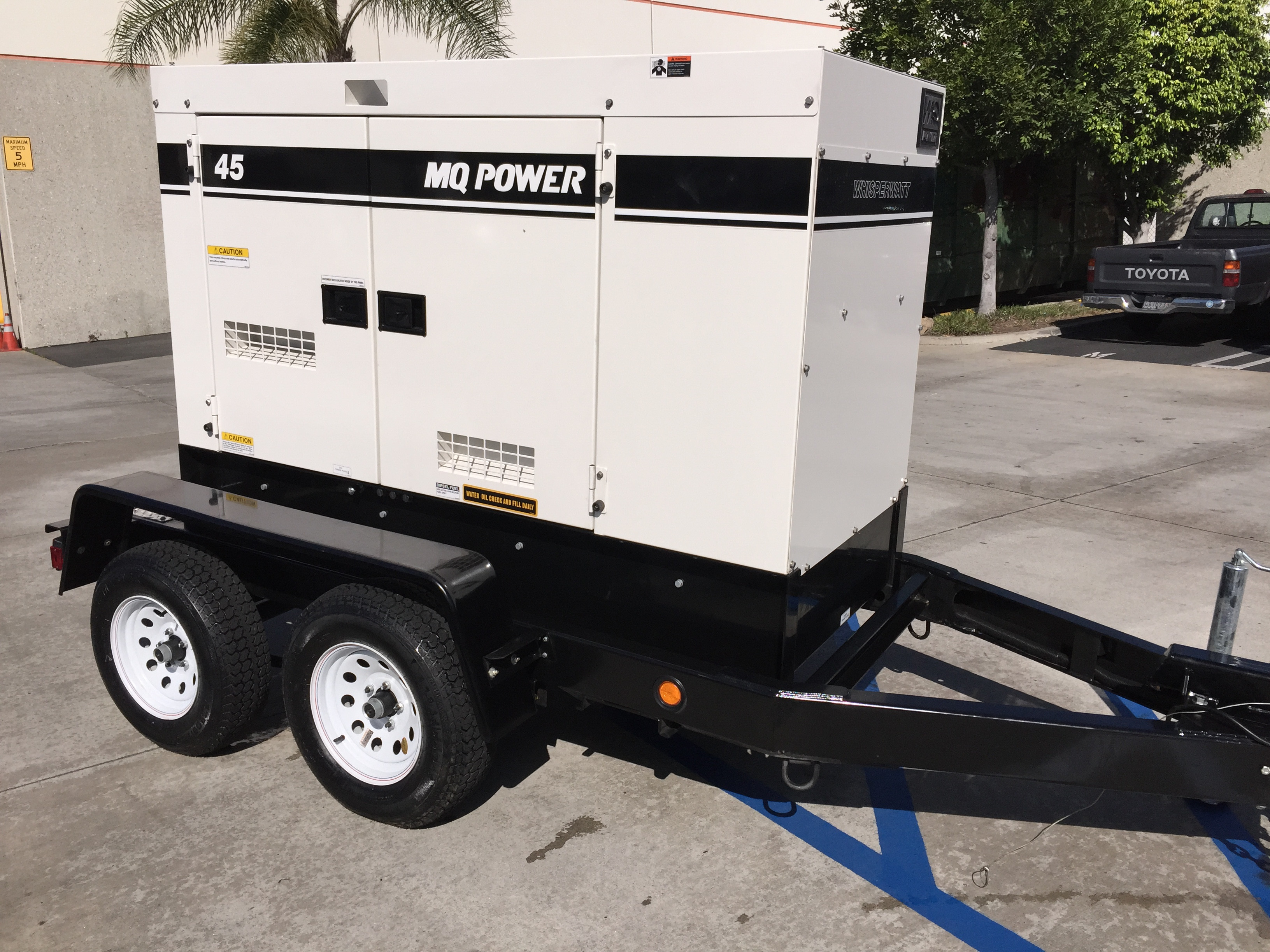

Diesel Generator, 45 KVA (36KW) TOW

Diesel Generator, 45 KVA (36KW) TOW


Unit Specifications

Prime Rating 36 kW 45 kVA

Standby Rating 40 kW 50 kVA

Generator RPM 1800

Voltage - Three Phase 208, 220, 240, 416, 440, 480V Switchable

Voltage - Single Phase 120, 127, 139, 240, 254, 277V Switchable

Generator Design Revolving field, Self-ventilated, Drip-proof, Single bearing

Voltage Regulation (No Load to Full Load) ±0.5 %

Power Factor 0.8

Armature Connection Star with Neutral/ Zig Zag

Excitation Brushless with AVR

No. Poles 4-pole

Frequency 60 Hz

Frequency Regulation (steady state load) ±0.25 %

Sound Level (Full Load at 23 ft.) 66 dB(A)

Diesel generator 50 kva 36kw tow in Clearwater FL, Tampa, St. Petersburg, Pinellas County, and Hillsborough County.

Call for Pricing
Diesel Generator, 70 KVA (56KW) TOW

Diesel Generator, 70 KVA (56KW) TOW

Our Diesel generators are designed to provide reliable temporary power at entertainment venues, disaster relief operations and construction sites.

Amperage

Rated Voltage

Maximum Amps

1Ø 120 Volt

155.4 Amps (4 wire) 168A x 2 (Zigzag)

1Ø 240 Volt

77.8 Amps (4 wire) 168A (Zigzag)

3Ø 240 Volt

168 Amps

3Ø 480 Volt

84 Amps

Main Line Circuit Breaker Rating

200 Amps

Over Current Relay Trip Set Point 480V Mode Only

84 Amps

Call for Pricing

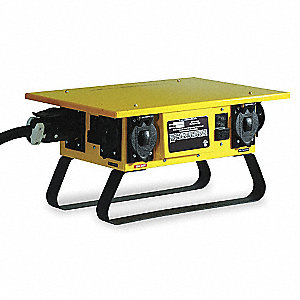

Spider Box

Spider Box

Daily: $65.00

Weekly: $135.00

INLET/INPUT: Powered by 1 50A, 125/250v, 12, 000 watts locking California style CS-63, compatible with 19180008 and 19190008

OUTLETS: 6 NEMA 5-20 2500-5000 watts, weatherproof, straight blade receptacles with independent GFCI modules & circuit breakers, 1 NEMA L6-30 7, 500 watts, weatherproof, twist-lock receptacle, with circuit breaker

PASS-THROUGH: 1 50A 125/250v 12, 000 watts locking California style CS-63, for running boxes in series

HEAVY DUTY 16 GAUGE steel stands up to rugged job sites with a CORROSION RESISTANT powder coat finish, rated to NEMA-3 with rainproof weather-strip

$65.00

Power Distribution Box, 120/208V AC Voltage Rating, 200 A Amps, Number of Poles: 4

Power Distribution Box, 120/208V AC Voltage Rating, 200 A Amps, Number of Poles: 4

  • ItemPower Distribution Box
  • Voltage Rating120/208V AC
  • Amps200 A
  • InletCam Locks
  • Outlet(6) 50A @ 125/250V Non-GFCI
  • Number of Poles4
  • Number of Wires5
  • ColorSilver/Black
  • Material of ConstructionStainless Steel
  • Enclosure RatingNEMA 3R
  • Features3-Phase With Frame
  • StandardscULus, UL 1640

$189.99
